Helical Static Mixer
(Type HT)

The HT helical static mixer pioneered the inline motionless mixing industry over 40 years.  It is a cost effective static mixer design with moderate mixing performance capabilities.  It is most suitable for use in small diameter turbulent flow and laminar flow applications where the mixing task is simple and where it’s characteristic features of low pressure drop and open geometric structure are best for the specific application.  For difficult applications, the high performance GX static mixer is recommended for laminar flow applications and the high performance GV static mixer is recommended for turbulent flow applications.

The Helical static mixer is available in metal and plastic construction in a wide variety of configurations and sizes.

Figure #1: Homogeneity achieved with HT helical static mixing elements
Figure #1


Metal Helical Static Mixers


Helical Static Mixing Elements only (metal)
Figure #2: Helical Static Mixer
Figure #2
Helical mixing element assemblies in metal construction are available in 316L S/S to fit virtually any pipe size.  Standard sizes are made to fit Sch. 40 pipe, however mixing elements can be made to fit most pipe diameters.  Sizes range from 0.25” – 12” diameter.Threaded Pipe Ends Helical Static Mixer (metal)Figure #3: Metal Helical Static-Mixer with Threaded Ends
Figure #3
Helical static mixing units with threaded pipe end connections are available in 1/8” – 2” diameter Sch. 40 pipe sizes.  Non-Standard pipe and tubing sizes are available upon request.Flanged Pipe Ends Helical Static Mixer (metal)Figure #4: Metal Helical with Flanged Ends
Figure #4

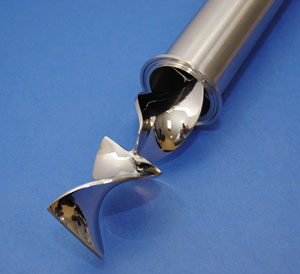

Helical static mixing units in flanged housings are available in 1/8” – 12” diameter Sch. 40 pipe sizes.  Non-Standard pipe and tubing sizes are available upon request.Sanitary Helical Static Mixer (metal)Figure #5: Sanitary Helical Static-Mixer
Figure #5
Sanitary design helical static mixing units are available in 1” – 3-1/2” tubing sizes.  They are of sanitary design with tri-clamp flanges suitable for use in the food, pharmaceutical, cosmetic, beverage and other industries.Edge-Seal Brazed Helical Static Mixer (metal)Figure #6: Edge Seal Brazed Helical Static-Mixer
Figure #6
The helical static mixing elements are edge-seal brazed to the tubing ID.  This allows for very high pressure drops to be taken across the static mixing elements and for enhanced heat transfer in static mixer heat exchanger applications

Plastic Helical Static Mixers


Helical Mixing Elements only (plastic)
Figure #7: Plastic Helical Static-Mixer
Figure #7
Helical Mixing element assemblies in plastic construction are available in Polypropylene, Acetal, Kynar and PTFE Teflon.  Depending on material of construction, sizes range from 3/32” to 2-1/2” diameter.






Threaded Metal Pipe Ends with Plastic Helical Static Mixer Figure #8: Plastic Helical Elements in Metal Pipe
Figure #8
Plastic helical static mixing units in Sch. 40 metal pipe with threaded ends are available in 1/8” – 2” diameter sizes.Kynar and PTFE Teflon Helical Static MixersFigure #9: Kynar & Teflon Plastic Helical Static-Mixer
Figure #9
Plastic helical static mixing elements in Kynar, PTFE Teflon, Polypropylene and most corrosion resistant materials are available in sizes up to 2-1/2” diameter. Housings include plastic piping with threaded or flanges ends and plastic lined metal pipe
History of the HT Helical Static Mixing Structure
The HT Helical static mixer was invented by Arthur D. Little Company of Cambridge, Massachusetts, USA in the late 1960’s and licensed the technology to Kenics Corporation of Andover, Massachusetts, USA who trademarked the design as the Kenics Static Mixer*.  Kenics did a tremendous amount of fundamental high quality R&D work on the Helical Bowtie structure and commercialized the static mixer in hundreds-of-thousands of installations where the mixing requirements were of easy to mid-range difficulty.

* StaMixCo is not a distributor of or affiliated with Kenics Corporation.  Kenics Static Mixer is a brand and trademark of Kenics Corporation.
